Shader setting class that holds rendering settings. More...

#include <shader_setting.hpp>

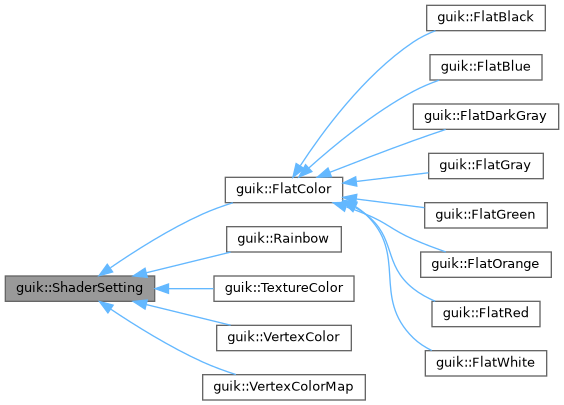

Inheritance diagram for guik::ShaderSetting:

[legend]

Public Types
using	Ptr = std::shared_ptr< ShaderSetting >

using	ConstPtr = std::shared_ptr< const ShaderSetting >

Public Member Functions
	ShaderSetting ()
	Default constructor.

	ShaderSetting (int color_mode)
	Constructor.

	ShaderSetting (int color_mode, const Eigen::Matrix4f &transform)
	Constructor.

template<typename Transform >
	ShaderSetting (int color_mode, const Transform &transform)
	Constructor.

	ShaderSetting (const ShaderSetting &other)
	Copy constructor.

ShaderSetting &	operator= (const ShaderSetting &other)
	Copy assignment operator.

virtual	~ShaderSetting ()
	Destructor.

ShaderSetting	clone () const
	Clone the shader setting.

template<typename T >
ShaderSetting &	add (const std::string &name_, const T &value)
	Add a new parameter to the shader setting.

template<typename T >
std::optional< T >	get (const std::string &name_)
	Get a parameter value from the shader setting.

template<typename T >
std::optional< T >	get (const std::string &name_) const
	Get a parameter value from the shader setting.

template<typename T >
T	cast (const std::string &name_) const
	Get a parameter value from the shader setting. This method avoid type checking. Fast but unsafe.

void	set (glk::GLSLShader &shader) const
	Set shader parameters to the shader program.

ShaderSetting &	static_object ()
	Set static object flag.

ShaderSetting &	dynamic_object ()
	Set dynamic object flag.

Eigen::Vector4f	material_color () const
	Get material color (FLAT_COLOR).

ShaderSetting &	set_color (float r, float g, float b, float a)
	Set material color (FLAT_COLOR).

template<typename Color >
ShaderSetting &	set_color (const Color &color_)
	Set material color (for FLAT_COLOR).

ShaderSetting &	set_alpha (float alpha)
	Set alpha value of the material color.

ShaderSetting &	make_transparent ()
	Make the object transparent (alpha blending).

ShaderSetting &	set_rainbow_range (const Eigen::Vector2f &minmax_z)
	Set RAINBOW color range.

ShaderSetting &	set_rainbow_axis (const Eigen::Vector3f &axis)
	Set RAINBOW coloring axis.

float	point_scale () const
	Get point size scale factor.

ShaderSetting &	set_point_scale (float scaling)
	Set point size scale factor.

float	point_size () const
	Get point size.

ShaderSetting &	set_point_size (float size)
	Set point size.

ShaderSetting &	set_point_size_offset (float offset)
	Set point size offset.

ShaderSetting &	set_point_shape_mode (guik::PointShapeMode::MODE mode)
	Set point shape mode.

ShaderSetting &	set_point_shape_circle ()
	Set point shape to circle.

ShaderSetting &	set_point_shape_rectangle ()
	Set point shape to rectangle.

ShaderSetting &	set_point_scale_mode (guik::PointScaleMode::MODE mode)
	Set point size scale mode.

ShaderSetting &	set_point_scale_screenspace ()
	Set point size scale to screen space.

ShaderSetting &	set_point_scale_metric ()
	Set point size scale to metric.

ShaderSetting &	set_point_shape (float point_size, bool metric, bool circle)
	Set point shape with common settings.

ShaderSetting &	set_old_default_point_shape ()
	Set old (v0.1.9) default point shape (rectangle + screenspace)

ShaderSetting &	remove_model_matrix ()

int	color_mode () const
	Get color mode.

ShaderSetting &	set_color_mode (int color_mode)
	Set color mode.

Eigen::Matrix4f	model_matrix () const
	Get model matrix.

Eigen::Vector3f	translation () const
	Get translation vector from the model matrix.

Eigen::Matrix3f	rotation () const
	Get rotation matrix from the model matrix.

template<typename Transform >
ShaderSetting &	set_model_matrix (const Transform &transform)
	Set model matrix.

template<typename Transform >
ShaderSetting &	transform (const Transform &transform)
	Apply transformation to the model matrix.

ShaderSetting &	translate (float tx, float ty, float tz)
	Apply translation to the model matrix.

ShaderSetting &	translate (const Eigen::Vector3f &translation)
	Apply translation to the model matrix.

template<typename Vector >
ShaderSetting &	translate (const Vector &translation)
	Apply translation to the model matrix.

ShaderSetting &	rotate (const float angle, const Eigen::Vector3f &axis)
	Apply rotation to the model matrix.

template<typename Vector >
ShaderSetting &	rotate (const float angle, const Vector &axis)
	Apply rotation to the model matrix.

template<typename Scalar >
ShaderSetting &	rotate (const Eigen::Quaternion< Scalar > &quat)
	Apply rotation to the model matrix.

template<typename Scalar , int Dim>
ShaderSetting &	rotate (const Eigen::Matrix< Scalar, Dim, Dim > &rot)
	Apply rotation to the model matrix.

ShaderSetting &	scale (float scaling)
	Apply uniform scaling to the model matrix.

ShaderSetting &	scale (float sx, float sy, float sz)
	Apply scaling to the model matrix (non-uniform).

ShaderSetting &	scale (const Eigen::Vector3f &scaling)
	Apply scaling to the model matrix (non-uniform).

template<typename Vector >
std::enable_if_t<!std::is_arithmetic_v< Vector >, ShaderSetting & >	scale (const Vector &scaling)
	Apply scaling to the model matrix (non-uniform).

template<>
ShaderSetting &	add (const std::string &name, const Eigen::Isometry3f &value)

template<>
ShaderSetting &	add (const std::string &name, const Eigen::Affine3f &value)

Public Attributes
bool	transparent
	If true, the object is rendered as transparent.

std::vector< ShaderParameter >	params
	Shader parameters.

Detailed Description

Shader setting class that holds rendering settings.

Member Typedef Documentation

◆ ConstPtr

using guik::ShaderSetting::ConstPtr = std::shared_ptr<const ShaderSetting>

◆ Ptr

using guik::ShaderSetting::Ptr = std::shared_ptr<ShaderSetting>

Constructor & Destructor Documentation

◆ ShaderSetting() [1/5]

guik::ShaderSetting::ShaderSetting ( )

Default constructor.

Note: Default parameters are: color_mode : FLAT_COLOR point_scale : 1.0 model_matrix : Identity matrix

◆ ShaderSetting() [2/5]

guik::ShaderSetting::ShaderSetting ( int color_mode )

Constructor.

Parameters

color_mode Color mode (ColorMode)

◆ ShaderSetting() [3/5]

guik::ShaderSetting::ShaderSetting	(	int	color_mode,
		const Eigen::Matrix4f &	transform
	)

Constructor.

Parameters

color_mode	Color mode (ColorMode)
transform	Transform matrix (Eigen::Matrix4f)

◆ ShaderSetting() [4/5]

template<typename Transform >

guik::ShaderSetting::ShaderSetting	(	int	color_mode,
		const Transform &	transform
	)

inline

Constructor.

Parameters

color_mode	Color mode (ColorMode)
transform	Transform matrix (e.g., Eigen::Matrix4(f\|d) or Eigen::Isometry3(f\|d))

◆ ShaderSetting() [5/5]

guik::ShaderSetting::ShaderSetting ( const ShaderSetting & other )

Copy constructor.

◆ ~ShaderSetting()

virtual guik::ShaderSetting::~ShaderSetting ( )

inlinevirtual

Destructor.

Member Function Documentation

◆ add() [1/3]

template<>

ShaderSetting & guik::ShaderSetting::add	(	const std::string &	name,
		const Eigen::Affine3f &	value
	)

inline

◆ add() [2/3]

template<>

ShaderSetting & guik::ShaderSetting::add	(	const std::string &	name,
		const Eigen::Isometry3f &	value
	)

inline

◆ add() [3/3]

template<typename T >

ShaderSetting & guik::ShaderSetting::add	(	const std::string &	name_,
		const T &	value
	)

inline

Add a new parameter to the shader setting.

Parameters

name	Parameter name
value	Parameter value

Returns: This object

◆ cast()

template<typename T >

T guik::ShaderSetting::cast ( const std::string & name_ ) const

inline

Get a parameter value from the shader setting. This method avoid type checking. Fast but unsafe.

Parameters

name	Parameter name

Returns: Parameter value

◆ clone()

ShaderSetting guik::ShaderSetting::clone ( ) const

Clone the shader setting.

◆ color_mode()

int guik::ShaderSetting::color_mode ( ) const

Get color mode.

◆ dynamic_object()

ShaderSetting & guik::ShaderSetting::dynamic_object ( )

Set dynamic object flag.

◆ get() [1/2]

template<typename T >

std::optional< T > guik::ShaderSetting::get ( const std::string & name_ )

inline

Get a parameter value from the shader setting.

Parameters

name	Parameter name

Returns: Parameter value if found, otherwise std::nullopt

◆ get() [2/2]

template<typename T >

std::optional< T > guik::ShaderSetting::get ( const std::string & name_ ) const

inline

Get a parameter value from the shader setting.

Parameters

name	Parameter name

Returns: Parameter value if found, otherwise std::nullopt

◆ make_transparent()

ShaderSetting & guik::ShaderSetting::make_transparent ( )

Make the object transparent (alpha blending).

◆ material_color()

Eigen::Vector4f guik::ShaderSetting::material_color ( ) const

Get material color (FLAT_COLOR).

◆ model_matrix()

Eigen::Matrix4f guik::ShaderSetting::model_matrix ( ) const

Get model matrix.

◆ operator=()

ShaderSetting & guik::ShaderSetting::operator= ( const ShaderSetting & other )

Copy assignment operator.

◆ point_scale()

float guik::ShaderSetting::point_scale ( ) const

Get point size scale factor.

◆ point_size()

float guik::ShaderSetting::point_size ( ) const

Get point size.

◆ remove_model_matrix()

ShaderSetting & guik::ShaderSetting::remove_model_matrix ( )

◆ rotate() [1/4]

template<typename Scalar , int Dim>

ShaderSetting & guik::ShaderSetting::rotate ( const Eigen::Matrix< Scalar, Dim, Dim > & rot )

inline

Apply rotation to the model matrix.

Parameters

rot	Rotation matrix (Eigen::Matrix3(f\|d))

◆ rotate() [2/4]

template<typename Scalar >

ShaderSetting & guik::ShaderSetting::rotate ( const Eigen::Quaternion< Scalar > & quat )

inline

Apply rotation to the model matrix.

Parameters

quat	Rotation quaternion (Eigen::Quaternion(f\|d))

◆ rotate() [3/4]

ShaderSetting & guik::ShaderSetting::rotate	(	const float	angle,
		const Eigen::Vector3f &	axis
	)

Apply rotation to the model matrix.

◆ rotate() [4/4]

template<typename Vector >

ShaderSetting & guik::ShaderSetting::rotate	(	const float	angle,
		const Vector &	axis
	)

inline

Apply rotation to the model matrix.

◆ rotation()

Eigen::Matrix3f guik::ShaderSetting::rotation ( ) const

Get rotation matrix from the model matrix.

◆ scale() [1/4]

ShaderSetting & guik::ShaderSetting::scale ( const Eigen::Vector3f & scaling )

Apply scaling to the model matrix (non-uniform).

◆ scale() [2/4]

template<typename Vector >

std::enable_if_t<!std::is_arithmetic_v< Vector >, ShaderSetting & > guik::ShaderSetting::scale ( const Vector & scaling )

inline

Apply scaling to the model matrix (non-uniform).

Template Parameters

Vector Eigen vector type (e.g., Eigen::Vector3f, Eigen::Vector3d)

◆ scale() [3/4]

ShaderSetting & guik::ShaderSetting::scale ( float scaling )

Apply uniform scaling to the model matrix.

◆ scale() [4/4]

ShaderSetting & guik::ShaderSetting::scale	(	float	sx,
		float	sy,
		float	sz
	)

Apply scaling to the model matrix (non-uniform).

◆ set()

void guik::ShaderSetting::set ( glk::GLSLShader & shader ) const

Set shader parameters to the shader program.

Parameters

shader Shader program

◆ set_alpha()

ShaderSetting & guik::ShaderSetting::set_alpha ( float alpha )

Set alpha value of the material color.

◆ set_color() [1/2]

template<typename Color >

ShaderSetting & guik::ShaderSetting::set_color ( const Color & color_ )

inline

Set material color (for FLAT_COLOR).

Template Parameters

Color Eigen 4d vector type (e.g., Eigen::Vector4f, Eigen::Vector4d)

◆ set_color() [2/2]

ShaderSetting & guik::ShaderSetting::set_color	(	float	r,
		float	g,
		float	b,
		float	a
	)

Set material color (FLAT_COLOR).

◆ set_color_mode()

ShaderSetting & guik::ShaderSetting::set_color_mode ( int color_mode )

Set color mode.

◆ set_model_matrix()

template<typename Transform >

ShaderSetting & guik::ShaderSetting::set_model_matrix ( const Transform & transform )

inline

Set model matrix.

Template Parameters

Transform Transform matrix type (e.g., Eigen::Matrix4(f|d) or Eigen::Isometry3(f|d))

◆ set_old_default_point_shape()

ShaderSetting & guik::ShaderSetting::set_old_default_point_shape ( )

Set old (v0.1.9) default point shape (rectangle + screenspace)

◆ set_point_scale()

ShaderSetting & guik::ShaderSetting::set_point_scale ( float scaling )

Set point size scale factor.

◆ set_point_scale_metric()

ShaderSetting & guik::ShaderSetting::set_point_scale_metric ( )

Set point size scale to metric.

◆ set_point_scale_mode()

ShaderSetting & guik::ShaderSetting::set_point_scale_mode ( guik::PointScaleMode::MODE mode )

Set point size scale mode.

◆ set_point_scale_screenspace()

ShaderSetting & guik::ShaderSetting::set_point_scale_screenspace ( )

Set point size scale to screen space.

◆ set_point_shape()

ShaderSetting & guik::ShaderSetting::set_point_shape	(	float	point_size,
		bool	metric,
		bool	circle
	)

Set point shape with common settings.

Parameters

point_size	Point size in meters (if metric) or in pseudo pixels (if screenspace)
metric	If true, point size is in meters. If false, point size is in pixels.
circle	If true, point shape is circle. If false, point shape is rectangle.

◆ set_point_shape_circle()

ShaderSetting & guik::ShaderSetting::set_point_shape_circle ( )

Set point shape to circle.

◆ set_point_shape_mode()

ShaderSetting & guik::ShaderSetting::set_point_shape_mode ( guik::PointShapeMode::MODE mode )

Set point shape mode.

◆ set_point_shape_rectangle()

ShaderSetting & guik::ShaderSetting::set_point_shape_rectangle ( )

Set point shape to rectangle.

◆ set_point_size()

ShaderSetting & guik::ShaderSetting::set_point_size ( float size )

Set point size.

◆ set_point_size_offset()

ShaderSetting & guik::ShaderSetting::set_point_size_offset ( float offset )

Set point size offset.

◆ set_rainbow_axis()

ShaderSetting & guik::ShaderSetting::set_rainbow_axis ( const Eigen::Vector3f & axis )

Set RAINBOW coloring axis.

◆ set_rainbow_range()

ShaderSetting & guik::ShaderSetting::set_rainbow_range ( const Eigen::Vector2f & minmax_z )

Set RAINBOW color range.

◆ static_object()

ShaderSetting & guik::ShaderSetting::static_object ( )

Set static object flag.

◆ transform()

template<typename Transform >

ShaderSetting & guik::ShaderSetting::transform ( const Transform & transform )

inline

Apply transformation to the model matrix.

Template Parameters

Transform Transform matrix type (e.g., Eigen::Matrix4(f|d) or Eigen::Isometry3(f|d))

Note: The transformation is applied after the existing transformation. (T_new = T_old * transform)

◆ translate() [1/3]

ShaderSetting & guik::ShaderSetting::translate ( const Eigen::Vector3f & translation )

Apply translation to the model matrix.

◆ translate() [2/3]

template<typename Vector >

ShaderSetting & guik::ShaderSetting::translate ( const Vector & translation )

inline

Apply translation to the model matrix.

Template Parameters

Vector Eigen vector type (e.g., Eigen::Vector3f, Eigen::Vector3d)

◆ translate() [3/3]

ShaderSetting & guik::ShaderSetting::translate	(	float	tx,
		float	ty,
		float	tz
	)

Apply translation to the model matrix.

◆ translation()

Eigen::Vector3f guik::ShaderSetting::translation ( ) const

Get translation vector from the model matrix.

Member Data Documentation

◆ params

std::vector<ShaderParameter> guik::ShaderSetting::params

Shader parameters.

◆ transparent

bool guik::ShaderSetting::transparent

If true, the object is rendered as transparent.

The documentation for this struct was generated from the following file:

/home/koide/workspace/iridescence/include/guik/viewer/shader_setting.hpp

Public Types

Public Member Functions

Public Attributes

Detailed Description

Member Typedef Documentation

◆ ConstPtr

◆ Ptr

Constructor & Destructor Documentation

◆ ShaderSetting() [1/5]

◆ ShaderSetting() [2/5]

◆ ShaderSetting() [3/5]

◆ ShaderSetting() [4/5]

◆ ShaderSetting() [5/5]

◆ ~ShaderSetting()

Member Function Documentation

◆ add() [1/3]

◆ add() [2/3]

◆ add() [3/3]

◆ cast()

◆ clone()

◆ color_mode()

◆ dynamic_object()

◆ get() [1/2]

◆ get() [2/2]

◆ make_transparent()

◆ material_color()

◆ model_matrix()

◆ operator=()

◆ point_scale()

◆ point_size()

◆ remove_model_matrix()

◆ rotate() [1/4]

◆ rotate() [2/4]

◆ rotate() [3/4]

◆ rotate() [4/4]

◆ rotation()

◆ scale() [1/4]

◆ scale() [2/4]

◆ scale() [3/4]

◆ scale() [4/4]

◆ set()

◆ set_alpha()

◆ set_color() [1/2]

◆ set_color() [2/2]

◆ set_color_mode()

◆ set_model_matrix()

◆ set_old_default_point_shape()

◆ set_point_scale()

◆ set_point_scale_metric()

◆ set_point_scale_mode()

◆ set_point_scale_screenspace()

◆ set_point_shape()

◆ set_point_shape_circle()

◆ set_point_shape_mode()

◆ set_point_shape_rectangle()

◆ set_point_size()

◆ set_point_size_offset()

◆ set_rainbow_axis()

◆ set_rainbow_range()

◆ static_object()

◆ transform()

◆ translate() [1/3]

◆ translate() [2/3]

◆ translate() [3/3]

◆ translation()

Member Data Documentation

◆ params

◆ transparent
